Chapter 5: Distribution of Moisture and Precipitation

5.2 Adiabatic Processes and Vertical Distribution of Moisture »
5.2.4 Mean Thermodynamic Profiles of the Tropical Atmosphere

Compared with the midlatitudes, the tropical atmosphere is fairly steady. For example, the annual range of land surface temperature is less than or equal to the average daily range. Thus, it is tempting to think that mean thermodynamic conditions over the tropical oceans could be represented by a single sounding. In fact, mean thermodynamic conditions are varied. Profiles of relative humidity (Fig. 5.20), potential temperature and equivalent potential temperature (Fig. 5.21) illustrate variations over the Caribbean,29,30,31 tropical north Atlantic and tropical west Pacific32,33 and eastern Arabian Sea.34

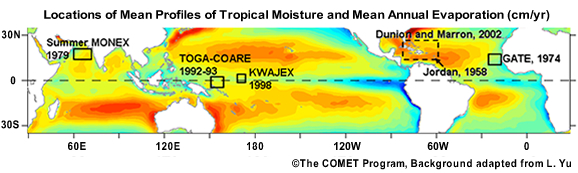

Locations of Mean Thermodynamic Profiles in difference tropical ocean basins
Mean relative humidity profiles from GATE, TOGA-COARE, KWAJEX, Jordan (1958), Dunion and Marron (2007)
Fig. 5.20. Average profiles of relative humidity (%) over (a) the West Indies for Jul-Oct based on soundings from Jordan;29 (b) the Caribbean and tropical north Atlantic, Jul-Oct 2002, from Dunion and Marron;31 (c) all GATE and KWAJEX soundings from Cetrone and Houze;33 and (d) the tropical east Atlantic for GATE convective bands ("slow lines"), and squall lines ("fast lines") and deep convective environments in the western tropical Pacific during TOGA COARE, from LeMone et al.32 For (d) GATE data are from Barnes and Sieckman28 and area shaded is within one standard deviation. The map shows the sounding locations and annual evaporation rate.

The mean sounding calculated by Jordan in 1958 (Fig. 5.20a, Fig. 5.21a) has often been used as a standard profile for the tropics. That mean sounding was calculated from soundings over the Caribbean. Updated mean soundings have been calculated from a larger set (770) of soundings by Dunion and Marron31 (Fig. 5.20b, Fig. 5.21b). In comparison to the updated mean sounding data by Dunion and Marron, the Jordan mean sounding is too dry in the low-mid troposphere (Fig. 5.20b). One of the contributors to to dry air in the low-middle troposphere is the Saharan Air Layer (SAL). The influence of the SAL was observed during the Global Atmospheric Research Program (GARP) Atlantic Tropical Experiment (GATE), held in the tropical eastern Atlantic and West Africa in 1974. The SAL is a dry and often very dusty air mass that forms when air is lifted from the desert during dust storms.31 Although dust storms can occur at any time, they are more common between late spring and early autumn. The driest layer occurs between 1500-6000 m and moves across the Atlantic above moist, relatively cool, low-level air. The effect of the SAL is seen in the mean GATE sounding where the low-to-mid troposphere is much drier than over the tropical, west Pacific (Fig. 5.20c). Chapter 2, Section 2.8, describes how the SAL and other dust layers are tracked using satellite remote sensing.

Mean thermodynamic profiles from GATE, TOGA-COARE, KWAJEX, Jordan (1958), Dunion and Marron (2007), and Summer MONEX

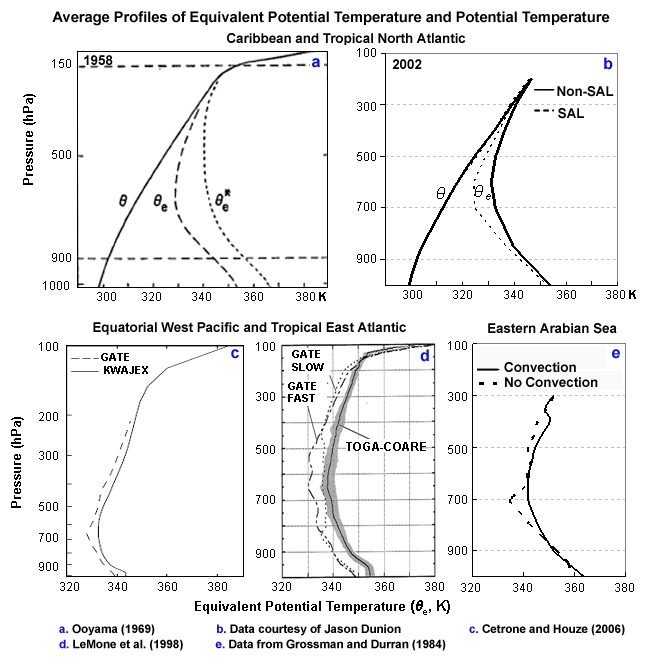

Fig. 5.21. Similar to 5.20 except for average profiles of potential temperature, θ, and equivalent potential temperature, θe, in (a) and (b) and average profiles of θe in (c), (d), and (e). (a) is from Ooyama30 using data from Jordan;29 (e) is based on data from the Summer Monsoon Experiment compiled by Grossman and Durran.34

Soundings from GATE, TOGA-COARE, and KWAJEX, show that greater moist thermodynamic or static energy exists over the tropical west Pacific than over the tropical east Atlantic (Figs. 5.21c,d). The difference is due mainly to the higher average SSTs in the Pacific (29.1°C compared to 27-28°C in the east Atlantic).32 Convective systems in the two regions sometimes duplicate the moisture characteristics of the overall average soundings. For example, Fig. 5.20d shows that GATE fast moving convective lines were drier than west Pacific convective lines, similar to the overall mean profile (Fig. 5.20c). However, slow-moving GATE convective lines had relative humidities greater than 80% up to 600 hPa.

Differences in the vertical distribution of moisture within regions are dictated by the presence or absence of precipitating convection and what part of the convection is profiled. Note the difference between convective and non-convective environments over the eastern Arabian Sea (Fig. 5.21e). The vertical distribution of moisture is also affected by dry intrusions from midlatitude cyclones, which occasionally extend into the tropics.35,36 More information on the thermodynamic energy observed in various tropical field projects can be found in Lucas and Zipser (2000).27
